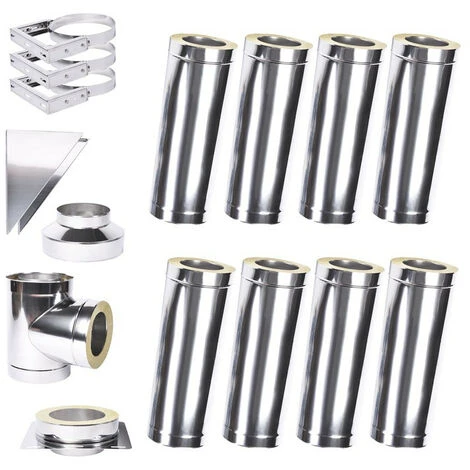

CONTENT KIT

• 1.0 Meter tube – 8 pieces
• 90° Tee
• adapt
• Chimney support up to 20 cm
• The clamp is adjustable up to 20 cm
• The base of the chimney + condenser

Set Technical Parameters

• 316l stainless steel: resistant to acids and heat
• steel grade: 1.4404
• welding technique : plasma welding
• sheet thickness: 0.6 mm very resistant
  • inner diameter: 130/160/ 180mm
  • outer diameter: 190/220/240 mm
• temperature class: T600
• pressure class: N1
• rock wool insulation thickness: 30 mm
• condensation resistance: W
• soot fire resistance: G50
• type of fuel: wood, gas, oil

NB: when choosing the diameter in the drop-down menu, note that this is the internal diameter.

The outer diameter is 60 mm thicker which corresponds to the insulation

kit de fabrication Européenne.

Garantie fabricant 20 ans
